Import Guide

NWH Aerodynamics aims to automate import process as much as possible but some actions can not be performed from scripting and so these have to be done manually.

  • If the build target is Windows / x86 make sure to change it to Windows / x86_64 or Unity InputSystem will not work. This can be done under File ⇒ Build Settings. InputSystem is required for demo scenes.
Build Settings.
  • If the InputSystem package is not already installed a message like the one below will pop up. Click Install/Upgrade.

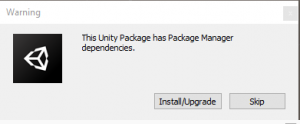

Package Manager dependencies warning.
  • Another message will pop up after InputSystem package is done installing. Click No. Afterwards, go to project settings and change Project Settings ⇒ Player ⇒ Active Input Handling to Both. This way both Unity InputSystem and the old Unity InputManager will work (NVP2 supports both).

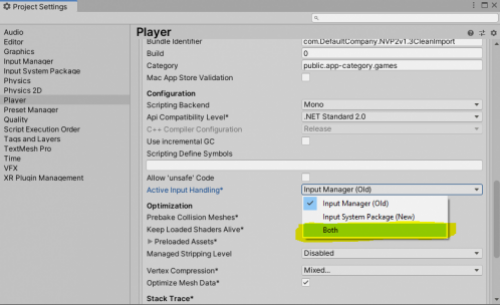

Active Input Handling option.
  • Ignore any mesh or tree related messages that pop up in the console. These are only import related and will not show up again.
  • Open the demo scene to test the import. Demo scenes should work out of the box. If they do not or if you encountered any issues during import please contact the developer.
  • To make the demo scene look better switch the color space of the project to Linear under Project Settings ⇒ Player ⇒ Color Space.

Assembly Definitions

This asset uses Assembly Definition (.asmdef) files.

  • If the project already uses assembly definitions accessing a script that belongs to this asset can be done by adding an assembly reference to the assembly definition of the script that needs asset. E.g. to access VehicleController adding a NWH.Aerodynamics.AircraftController reference to MyProject.asmdef is required.
  • If the project does not use assembly definitions simply remove all the .asmdef files from the asset after import.
